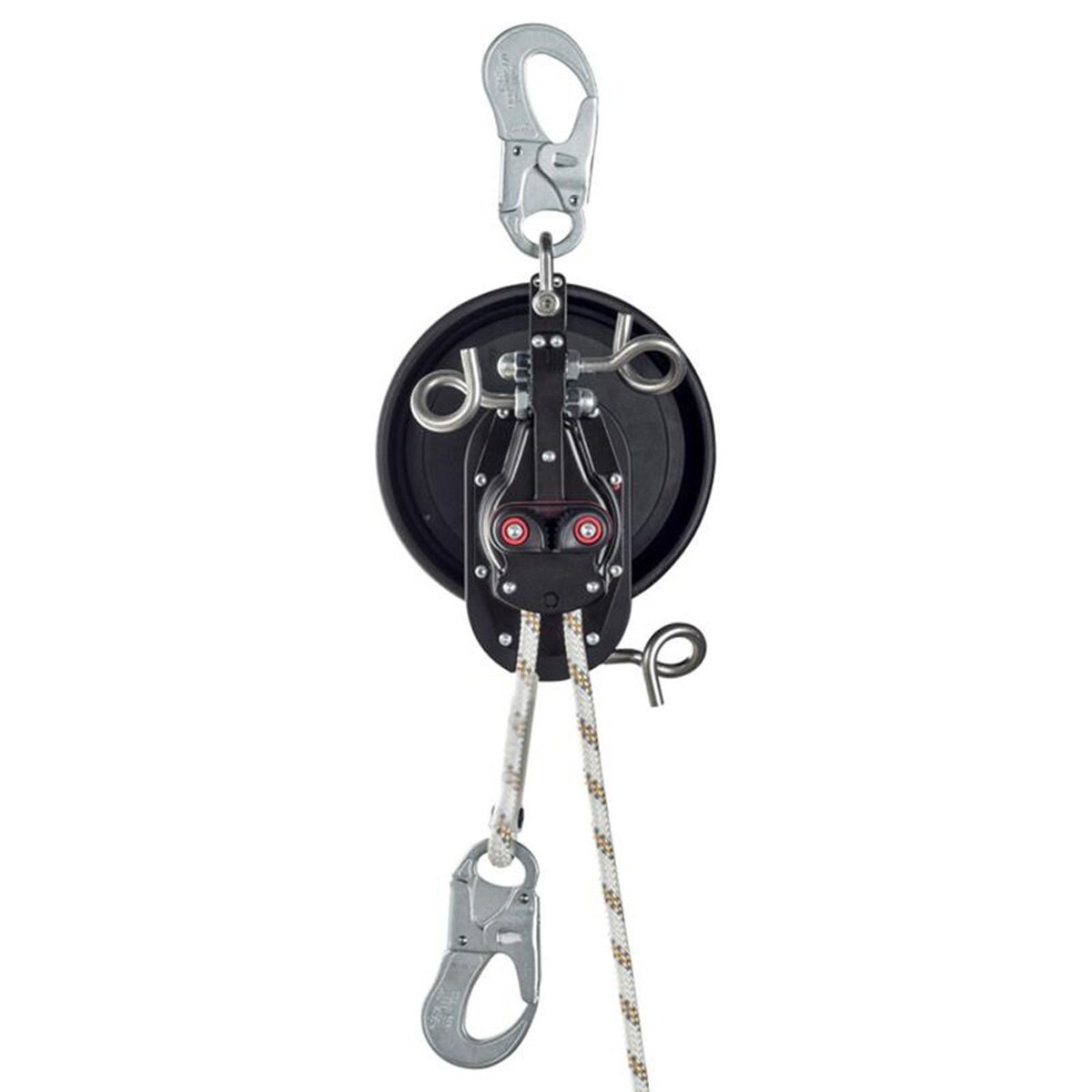

Singingrock EvaQ Hub 50M

Descent and rescue device with lifting function for height rescue by firefighters, industrial climbers and others when exposed to a hazard at great heights, such as in open-air parks, wind power plants or skyscrapers. It is also suitable for quick and easy rescue and even self-rescue of many people in danger.

Designed for a working load of 225 kg (2 people) automatic and redundant brake system consists of 2 flywheel brakes brake drums are made of steel for high resistance

Equipped with a handwheel made of durable plastic for easy and economical use even in difficult conditions and under full load Three stainless steel eyebolts ensure smooth descent speed control and multiple operating modes Rear side rope clamp facilitates lifting device to facilitate lifting, for drill connection Equipped with a hexagonal adapter The port is equipped with a steel double-trigger auto-locking connector with a 21 mm gate opening for versatile and easy hanging

Static polyamide core rope (according to EN 1891-A, ø 9.6 mm) can be up to 300 m long. The rope has a stitched eye at each end and a steel double-trigger auto-locking connector with a gate opening of 21 mm and 17 for storage and transport. We recommend two sizes of shock and waterproof plastic PROTECTIVE BOX with a volume of 46 liters or a storage RECOVERY BAG with a volume of 30 liters. When the device is stored in a closed protective case, annual inspection is easier without the need to disassemble this device. Learn more about the EvaQ HUB device

Weight : 3.4 kg (121 oz) + rope

Length : landing height max. 300 m (985 ft)

Working load : 30 - 225 kg (66 - 495 lb) designed for 2 people

Descending speed : about 0.8 m/s

Temperature range : -40 °C to +65 °C

CE1019 EN 1496:2017-B EN 341:2011-1A
